BATT UMG B6

Dimensions
Overall Length: 6330 mm
Overall Width : 2532 mm (with mirrors and side steps)
Overall Height: 2489mm (without tire)
Angle of Approach: 33°
Angle of Departure: 30°
Vehicle Layout

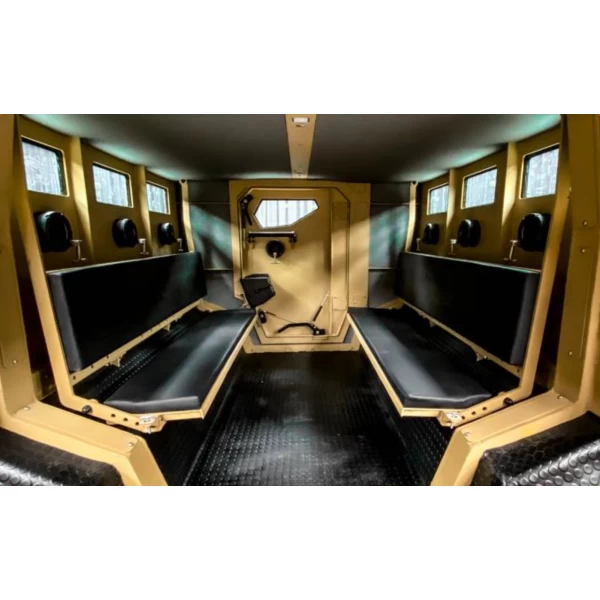

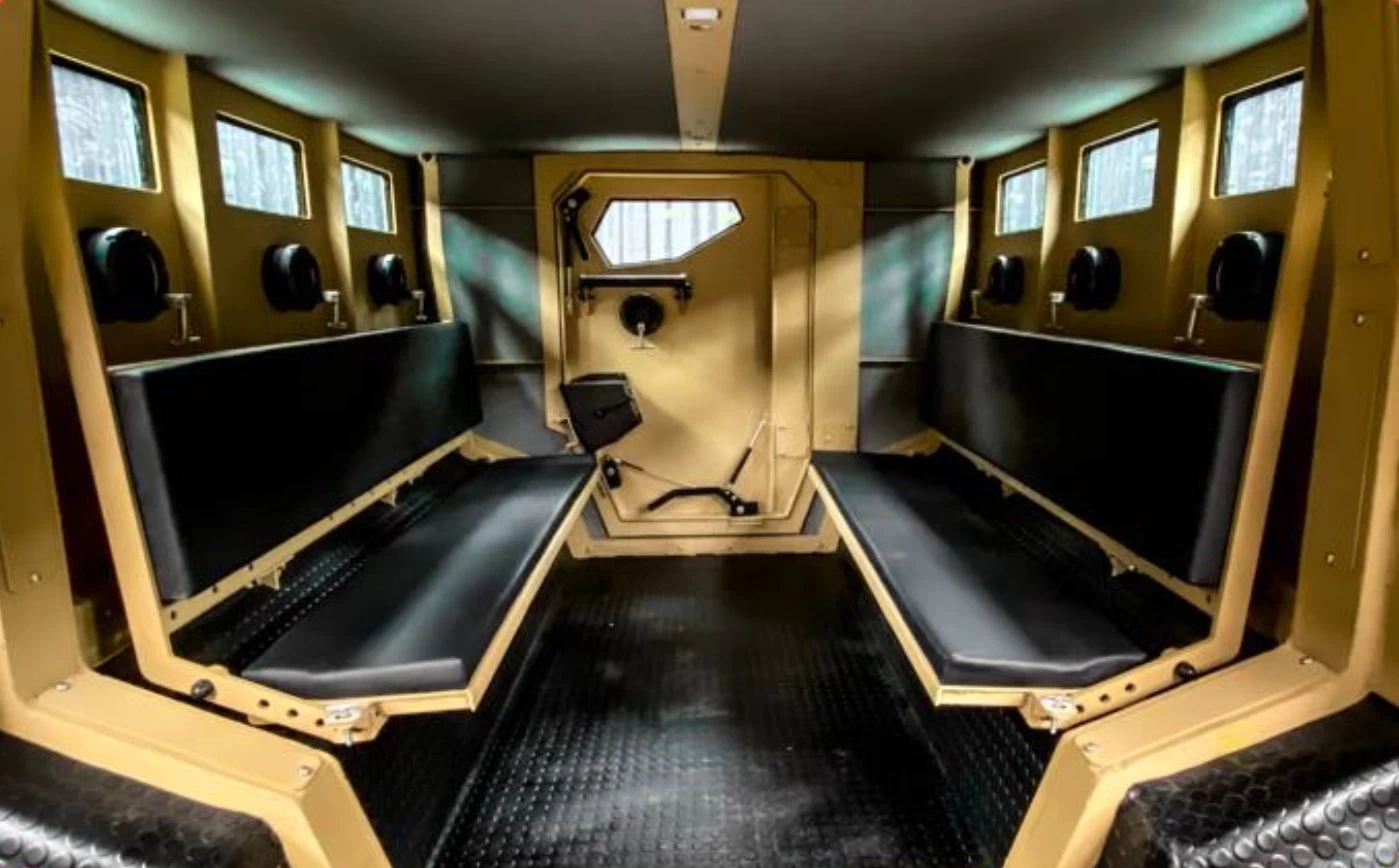

Seating layout: 2 + 6 (Optional + 2)

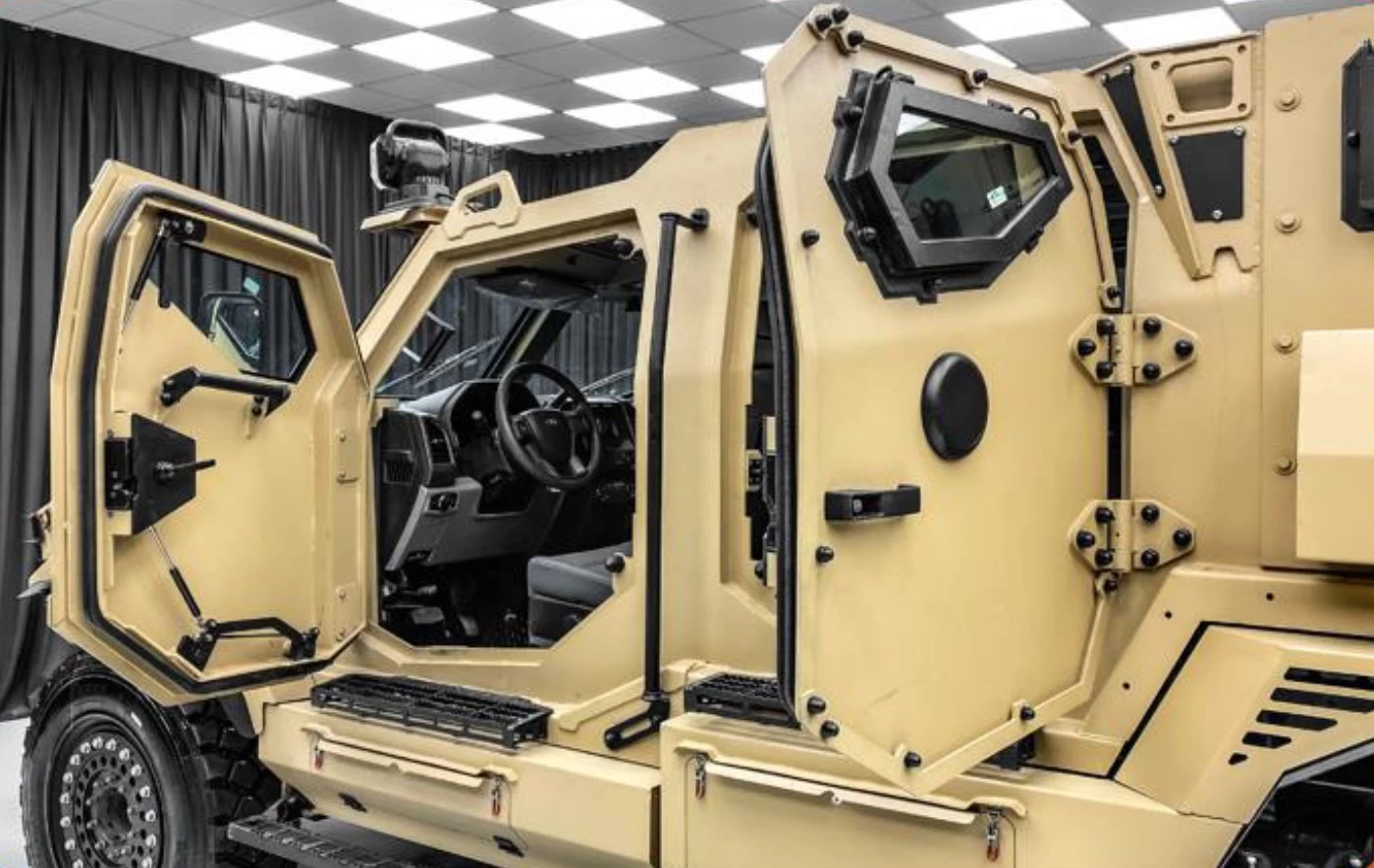

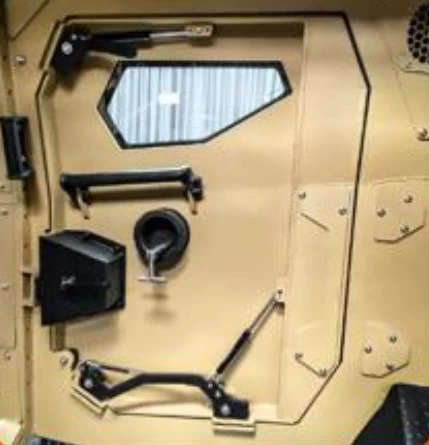

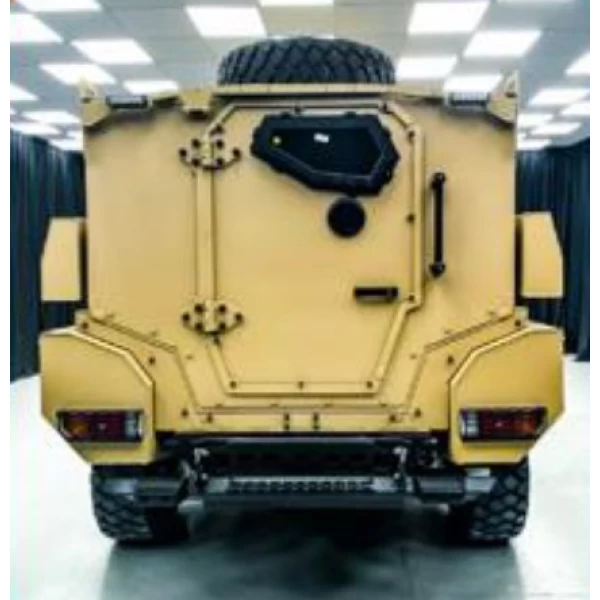

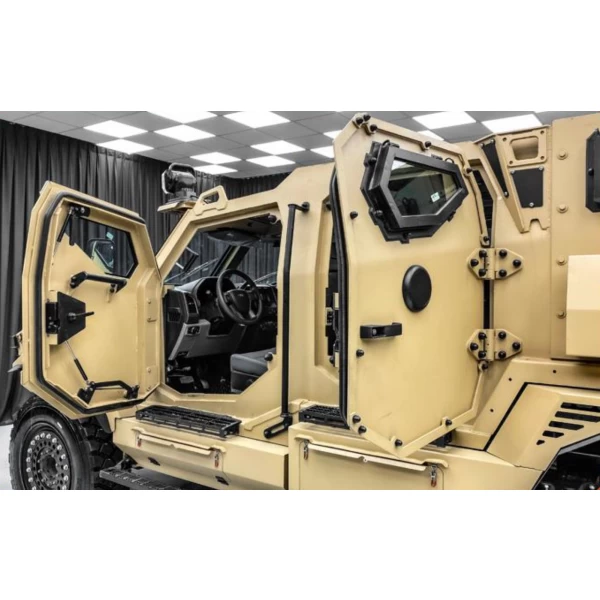

Doors: 4+1 (2 on each side + 1 Rear)

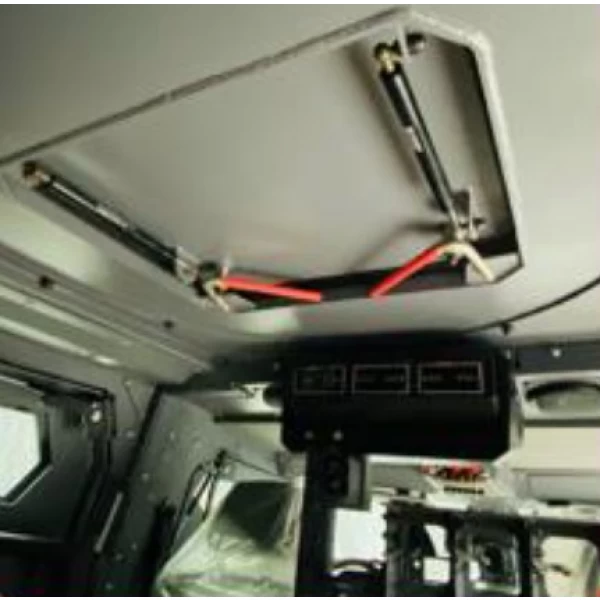

Roof turret with hatch: Optional Space for 3
Weights
Curb weight: 7,800 kg
Payload: 1,500 kg
Combat weight: 9,300 kg
Powertrain
Engine make: Ford
Engine type: 6.7L Ford Powerstroke Turbo-Diesel
Maximum Power: 330 hp @ 2600 rpm
Maximum Torque: 750 lb-ft @ 2000 rpm
Fuel type: Diesel
Compression Ratio: 16.2:1
Transmission: Torqshift 10-Speed Auto



Running Gear
Driveline: 4×4 w/ Low & High
Rear Axle Ratio: 4.88 with Limited Slip Differential
Steering: Recirculating ball, hydraulically assisted
Suspension: Front – Solid Twin-Coil Monobeam Axle w/ Upgraded Coils & Shocks
Rear – Solid Axle w/ Additional Leaf Springs

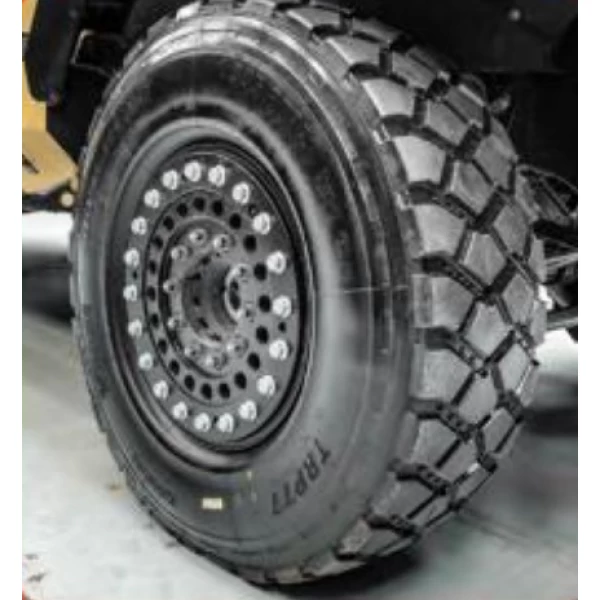

Rims: 20” Two Piece Rims

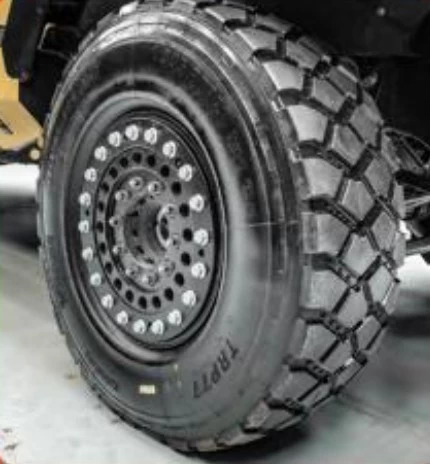

Tires: 335/80R20 Rated for GVWR
Run flat inserts: Fitted
STIS: Optional
Brakes: Front – 391mm Vented Rotors with Ceramic Pads
Rear – 400mm Vented Rotors with Ceramic Pads
Mobility
Top Speed: 75m/h or 120 km/h
Turning Radius: 21” (curb to curb)
Gradient: 30°
Fording: 800 mm
Range: 645 km



Optional Features:

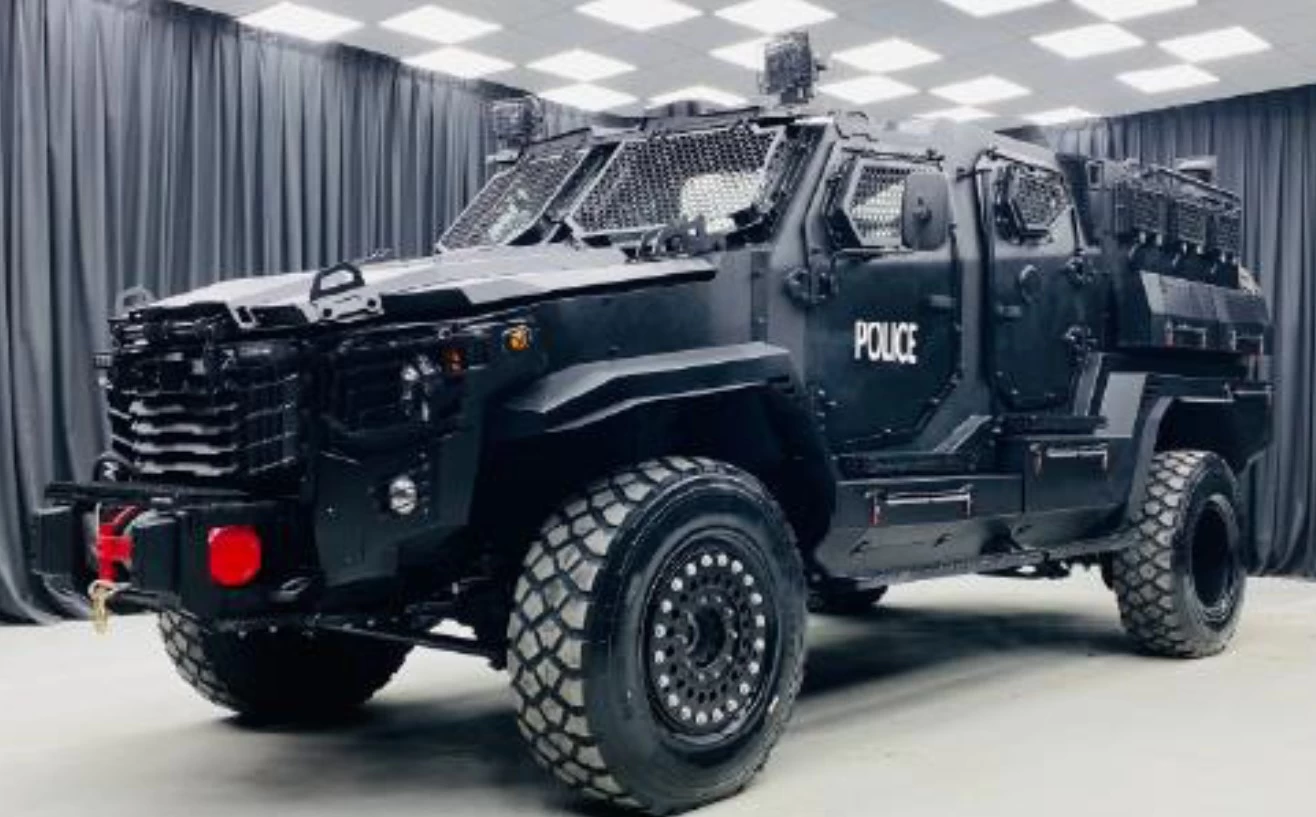

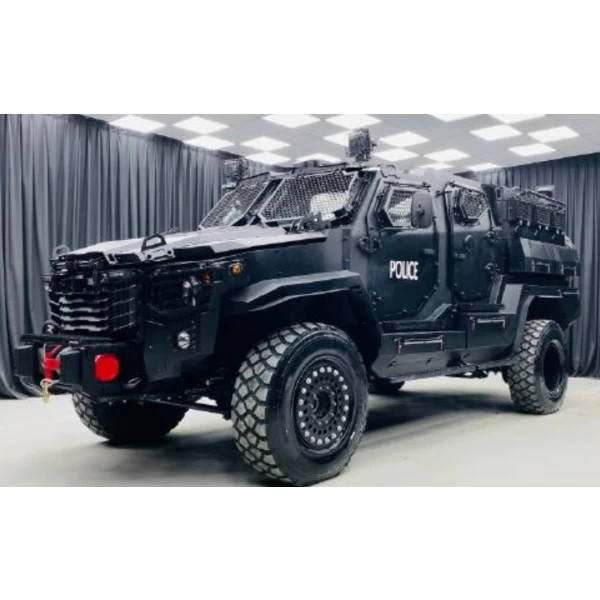

Custom Paint and Decals

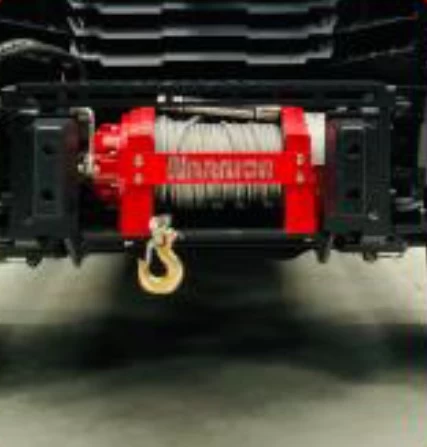

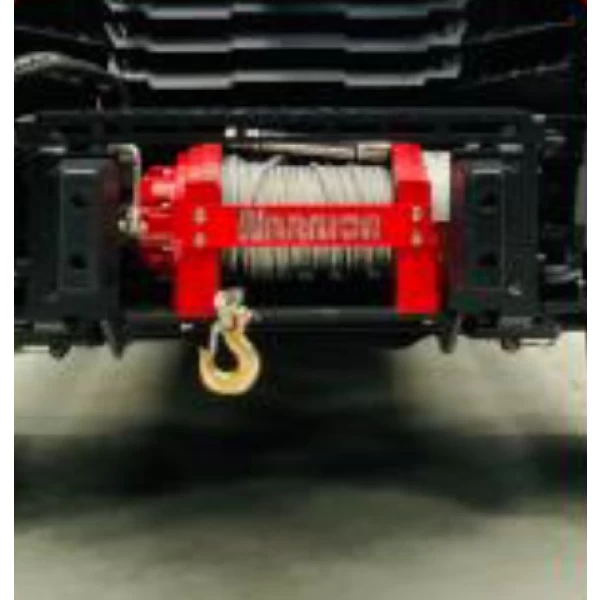

Electric Wench
Gunner Stand
Smoke Grenade Launcher

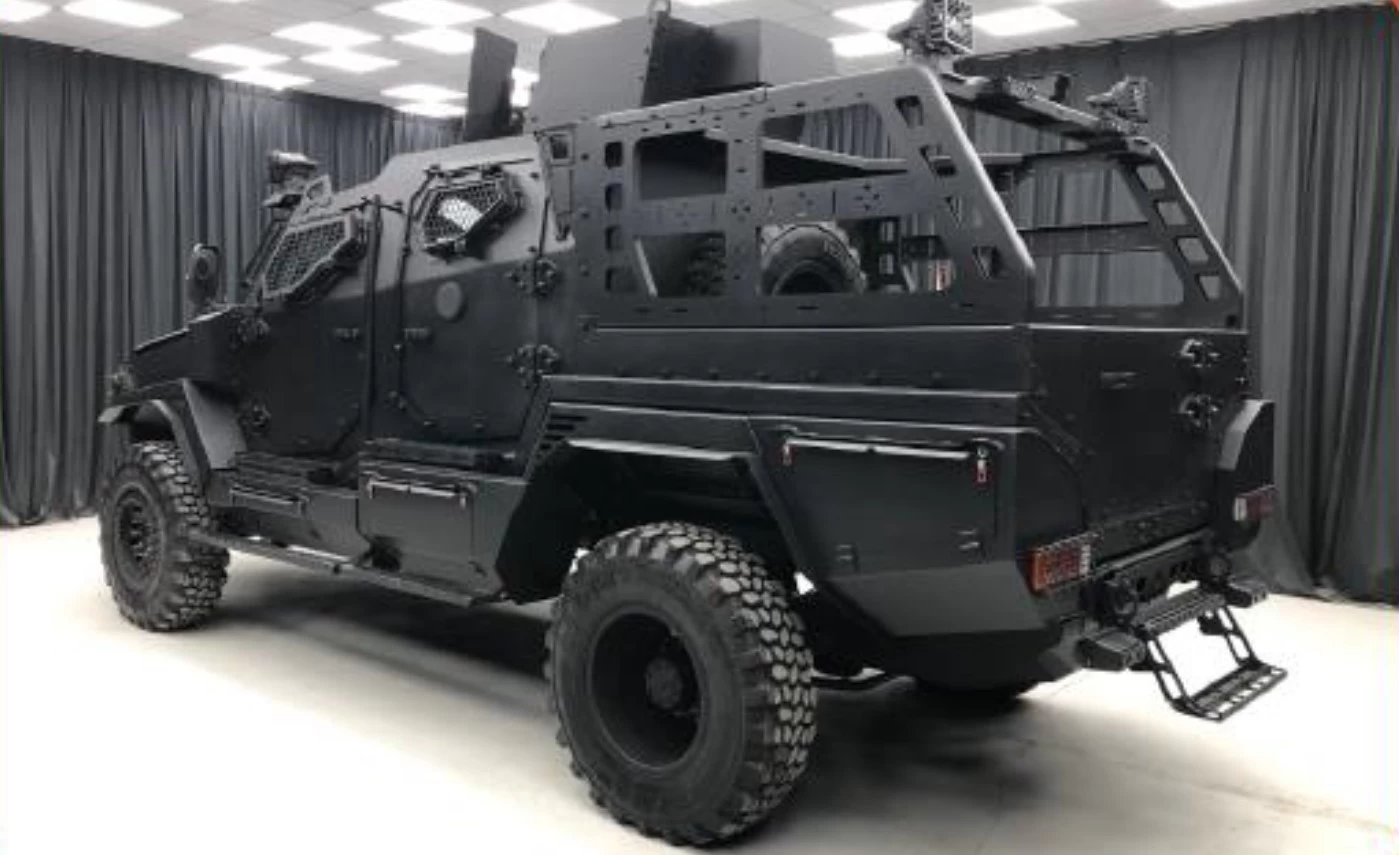

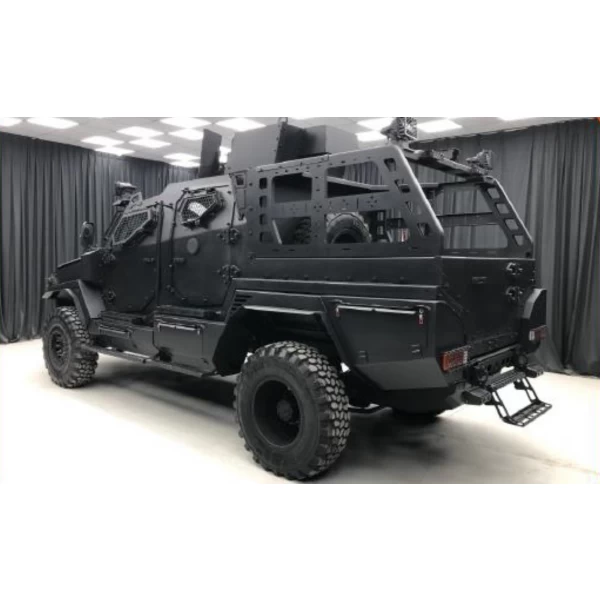

Pickup Conversion 360 Degree Turret

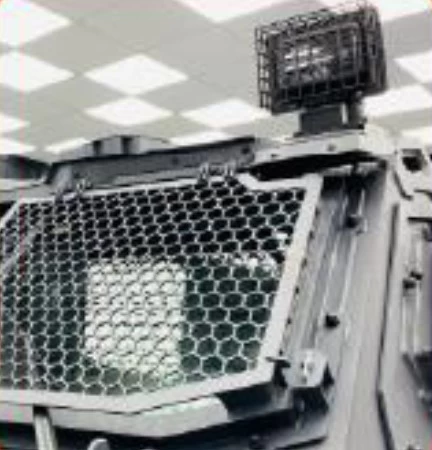

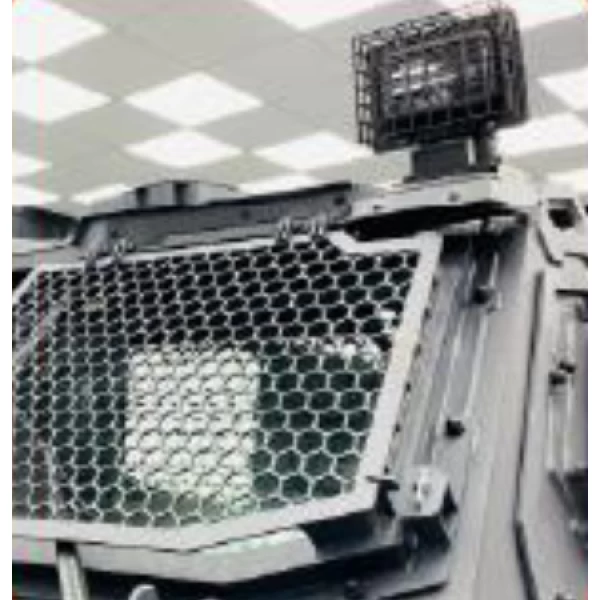

Riot Mesh Protection for Windows and Lights

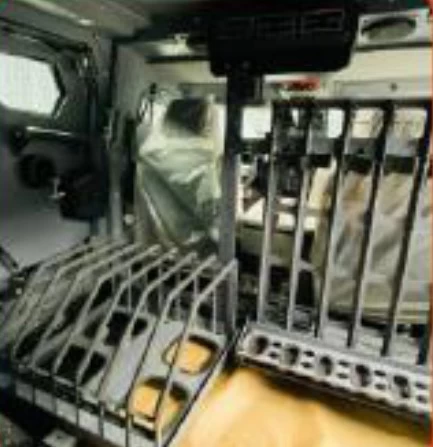

Riot Shield Rack & Gun Rack

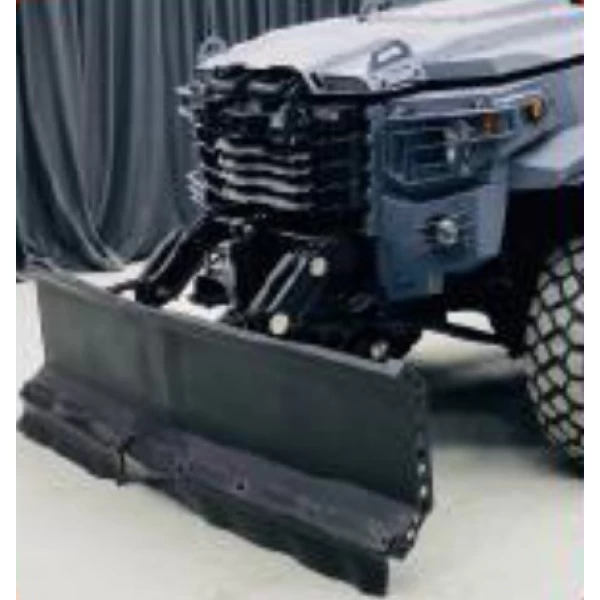

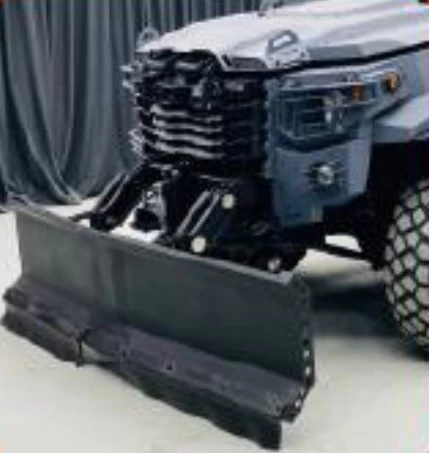

Lowering Hydraulic Ram
